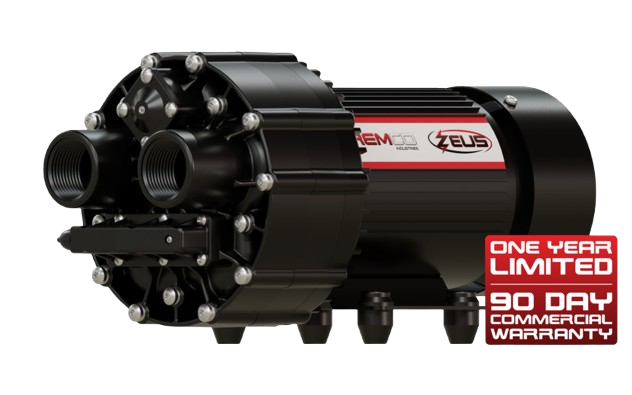

Zeus Smoothflo Pump
Zeus Smoothflo Pump
Regular price
$1,399.95
Regular price
Sale price
$1,399.95
Unit price
/
per
Couldn't load pickup availability
- ¾" ID outlet hose recommended, minimum hose size ¾" ID
- Use size 50 spray tips and above
- 200ft maximum hose length
- Do not exceed 130 PSI operating pressure
- If rapid switch cycling occurs contact factory immediately
- Pressure gauge near pump to aid with system monitoring
- 50 AMP fuse recommended
- Max flow: 14 GPM
- Max pressure:150 PSI
- Control: Duel control Smoothflo
- Voltage: 24 VDC
- Port Size: 1" FNPT
- Spray system recommendations: 3/4" hose/minimum hose size 5/8", 250ft max hose length, size 60 spry tips for operating pressure of 100psi, size 40 spray tips for operating pressure of 125psi, do not use smaller than size 40 tip, 50 amp fuse, pressure gauge to aid with system
- Made in the U.S.A.
- Self priming up to 14' vertically
- Heavy duty fan cooled motor
- Aluminum Heatsink for better heat depression
- Softwash Applications, Dust Suppression, wash down applications, Ag and Industrial Spraying.
- 10 AWG wire leads
- Capable of being dry run
- Maximum Liquid Temperature of 140° F
- Maximum Shell Temperature of 180° F
