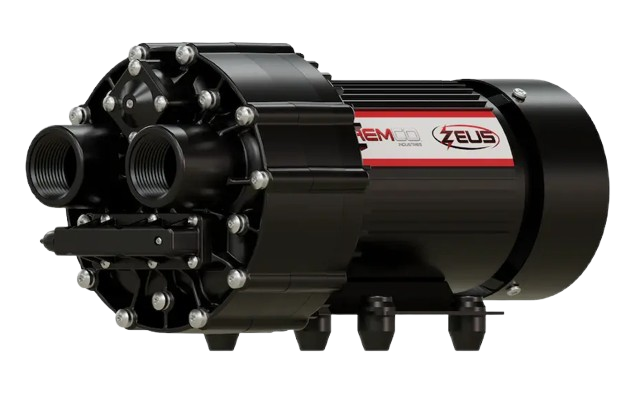

Remco Zeus Smoothflo Pump

Remco 9559-9K5-971 Zeus Smoothflo Pump - 14GPM, 1"FNPT, Dual Control, 24 VDC, 150PSI, 12" 10AWG Leads, Heatsink and fan cooled

Optimal System Setup:

** Product warranty will be void if the optimal system setup guidelines are not followed**

• 1" ID outlet hose recommended, minimum hose size 5/8" ID
• Use size 50 spray tips and above
• 200ft maximum hose length
• Do not exceed 130 PSI operating pressure
• If rapid switch cycling occurs contact factory immediately
• Pressure gauge near pump to aid with system monitoring
• 50 AMP fuse recommended
